E85 loves to make horsepower, but it also loves a drink!

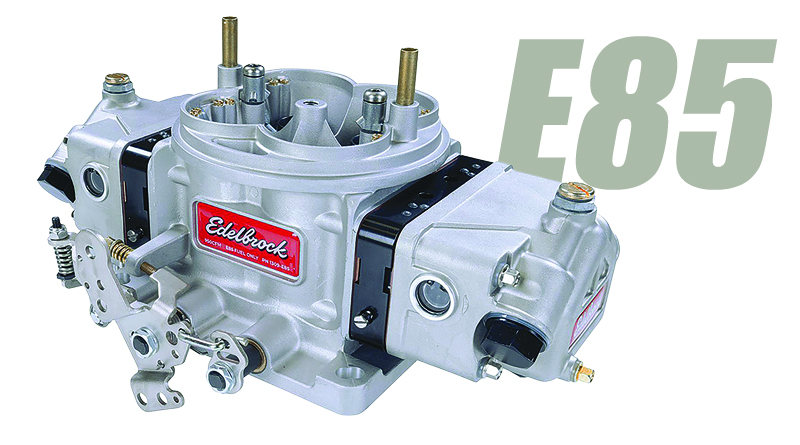

Edelbrock’s VRS-4150 E85 Race and Performance Carburettors are built to keep thirsty street and strip engines properly fed. Available in 850 and 950 cfm versions, they feature larger jets and custom billet metering blocks that increase fuel capacity by 30%, along with four metering circuits per venturi and externally accessible screw-in air bleeds for precise tuning. Other race-ready hardware includes annular boosters, dual 50 cc accelerator pumps, baffled fuel bowls, jet extenders, Nitrophyl floats, sight glasses, and adjustable mechanical secondaries.

The throttle flange accepts both 4150 and Dominator bolt patterns, while standard 4150 jets, bleeds, and power valves simplify tuning. Edelbrock recommends the 850-cfm version for combinations up to around 750 horsepower, while the larger 950-cfm unit suits higher-rpm and larger-displacement engines producing more than 800 horsepower. Feed it!
